slim Concealed Duct Chilled Water Fan Coil
2-pipe Super slim Ceiling Suspended Fan Coil Unit, DC motor, 600CFM, with CE certificated with air return box and
filter
Meco company focus on the R&D and manufacturing of fan coil
unit , we are doing OEM for more than 200 famous central air
conditioner enterprises in China, now the company is the preferred
of OEM manufacture for cassette units in China. At the same time,
our products with Meco brand marks was sold successfully to more
than 50 countries and regions , such as India, Iran, Bulgaria,
Italy, Chile, Mexico, United States and so on.

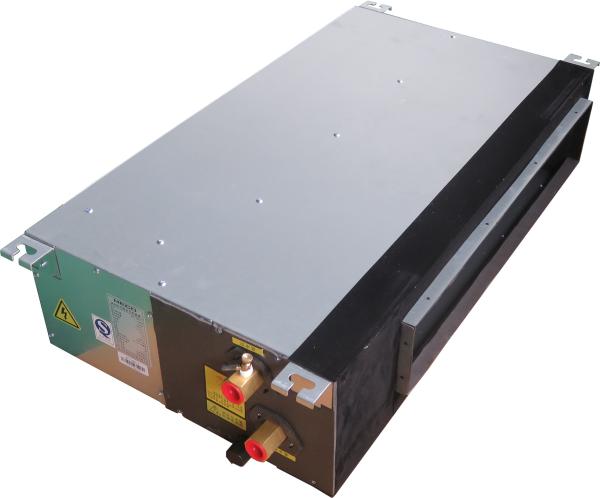

Ceiling Suspended Fan Coil Units, the terminal of central air conditioning system. It consists of
centrifugal fan and copper tube heat exchanger. The ceiling
consealed water fan coil unit can be embedded in the ceiling and
merged with interior decoration. Only exposing tuyere, which save
space and easy maintenance.
Widely used in hotels, restaurants, factories, hospitals,
exhibition hall, shopping malls, office rooms and other industrial
and civil construction of the combined air-conditioning system to
meet the cooling, heating and other requirements.
Main features of ceiling suspended fan coil unit
1. Fan
Our fans are made by international professional fan manufacture
with stable quality and reliable character with routine dynamic
balance precise debug. Fans run stable and quietly.
2. Water collection tray
Tensile plate with high-grade, smooth surface spray, corrosion
resistance, anti-rust
3. Heat exchanger
Hydrophilic aluminum fit to wear high quality copper tube , high
heat exchanging efficiency, large heat exchanging area, low
pressure dropping, large cooling and heating capacity.
4. Air return box is optional, which can ease installation, reduce
installation cost.
5. Integraded models
Air flow from 340 to 2380m3/h, including 9 models and different
static pressure type
6. High efficiency
Adopt good quality heat exchanger and fan, which is benefit to heat
exchanging capacity and efficiency.
7. Symmetrical design, easy to install
Symmetrical design, it is easy to change the unit from left water
tube connection to right tube connection
Specifications for ceiling suspended fan coil unit
1. Air flow 600CFM, 1020CMH
2. Cooling capacity 5.6Kw Heating capacty 9.1Kw
3. Static pressure 12Pa, 30Pa, 50Pa is optional.
4. Two pipe/tube system
5. AC motor , BLDC brushless motor optional
6. Left pipe or right pipe is optional.
7. Thickness of the unit is 200mm only.
8. Air return direction from back or bottom optional.
9. Plenum and filter is optional
10. Thermostat or valve is optional.
| Model | MFP-102WA-E |
| Air flow-CMH | 1020 |
| Air flow-CFM | 600 |
| Cooling capacity -W | 5600 |
| Heating capacty W | 9100 |
| Unit net dimentions | 1100*465*200 |
| Power supply | 220V,50Hz,1Ph |
| Piping | Two pipe/tube system |
| Air return type | Rear return or bottom return optional. |
| Static pressure | 12Pa, 30Pa, 50Pa optional. |
| Return box&filter | Plenum box or filter is optional |
| Pipe direction | Left or right optional and changable at site |
| Thickness | 235mm |
| Motor type | AC motor BLDC brushless optional |
| Thermostat | 3 speed, 0-10Vmodulating thermostat, or Modbus thermostat optional. |
| Valve | Two way valve or three way valve optional. |
| Testing condition-Cooling | Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out |
| Testing condition-Cooling | Dry ball 20℃ 50℃ in 40℃ out |
Testing condition for ceiling suspended fan coil unit:
2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the
cooling
All equipment wiring complies with CE requirements Reliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.
Maintenance Features
· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned
