4 Pipe Touch Mirror Fan Coil Unit Thermostat For Chilled Water TF-701 Series

    Buy cheap 4 Pipe Touch Mirror Fan Coil Unit Thermostat For Chilled Water TF-701 Series from wholesalers

    Buy cheap 4 Pipe Touch Mirror Fan Coil Unit Thermostat For Chilled Water TF-701 Series from wholesalers
    • Buy cheap 4 Pipe Touch Mirror Fan Coil Unit Thermostat For Chilled Water TF-701 Series from wholesalers
    • Buy cheap 4 Pipe Touch Mirror Fan Coil Unit Thermostat For Chilled Water TF-701 Series from wholesalers
    • Buy cheap 4 Pipe Touch Mirror Fan Coil Unit Thermostat For Chilled Water TF-701 Series from wholesalers

    4 Pipe Touch Mirror Fan Coil Unit Thermostat For Chilled Water TF-701 Series

    Ask Lasest Price
    Brand Name : EKON or MECO or OEM
    Model Number : TF-701
    Certification : CE,ISO
    Price : To be check by mail
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000pcs per week
    Delivery Time : 15days after receive payment
    • Product Details
    • Company Profile

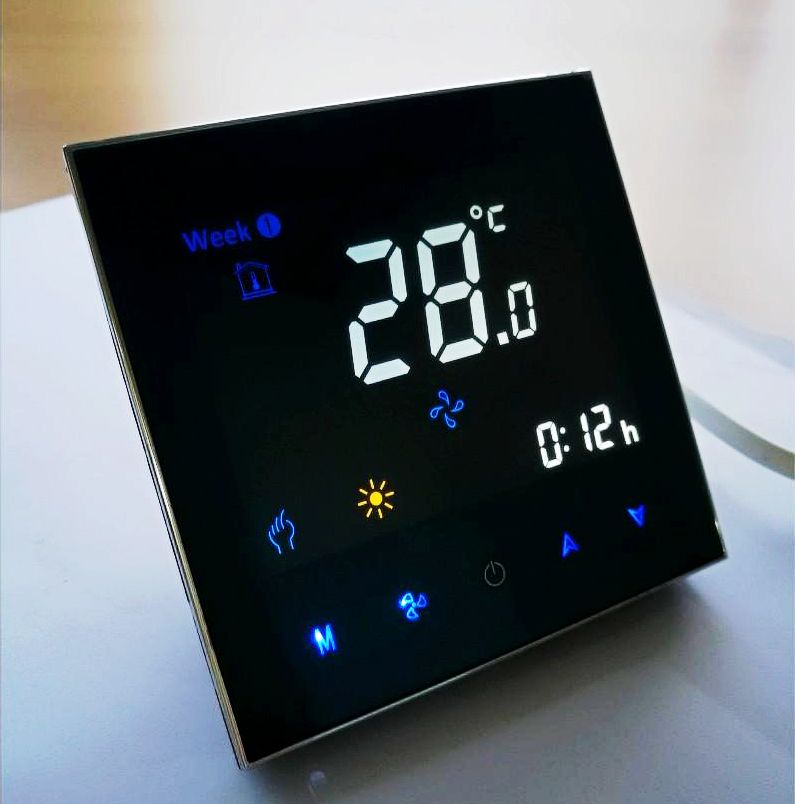

    4 Pipe Touch Mirror Fan Coil Unit Thermostat For Chilled Water TF-701 Series

    4 pipe touch mirror FCU thermostat-Room thermostat for chilled water fan coil application Nero Specchio Design TF-701 Series

    BRIEF INTRODUCTION OF EKON FAN COIL UNIT THERMOSTAT
    TF-701 series Touch Screen fan coil unit thermostat, is the trustable Room Thermostat.
    Microprocessor based fan coil unit thermostat with LCD display.
    Designed to control the fans and two wires moterized valves for chilled water fan coil unit applications.
    Detailed Product Description

    Mode:Cool, Heat And Vent.Temp:Room Temperature Setting
    Protection:Low Temperature ProtectionBack Light:Backlight Function Available
    Remote:Remote Control (Optional)


    Room Thermostat for fan coil unit control Nero Specchio Design/TF-701 series


    MAIN FEATURES
    1. Mirror touch screen with white color display.
    2. Modbus RS485 RTU optional;
    3. Smart phone App WIFI remote control optional;
    4. Fan coil and Floor Heaing both available;
    5. Hidden 86mm box and European 60mm round box both available.
    6. Amazon Echo or Google Home accessable.
    7. Temperature for ℃ & ℉ is changeable.
    8. Auto restart function available.
    9. 5+2 six periods programmable maximize comfort and economic.



    TECHNICAL DATA
    Sensor:NTC
    Accuracy:±0.5℃
    Temp. Range:5 -35℃
    Power Consumption:<1.5W
    Timing error:<1%
    Power Supply:110~240V, 50 ~60Hz
    Current Load: Induction for fan: 3A; Resistive for fan: 5A
    Shell Material:PC (Fireproof)
    Dimension:86x86x13.3mm
    Installation box:86*86mm or European 60mm
    Ambient Temp.:0 ~ 45℃,5 ~ 95%RH(Non condensing)
    Storage Temp:-5~ 55℃

    Packaging & Shipping
    1.Port of Loading: Ningbo, China
    2.Standard Export Packaging: 50 PCS/CTN
    3.Shipping Way Avaliable: By Express Delivery / Air / Sea

    Price Terms︰FOB Ningbo
    Payment Terms︰TT
    Packing︰Standard export box
    Lead Time︰With in 15days for order below 200pcs
    Standards Certificate︰CE,CCC,ISO
    BMS-RS485 / BACnet︰no
    Backlight color︰white standard, blue optional
    Smart phone App WIFI control︰no
    0-10V motorized Valve︰no
    24Vac power supply︰no
    Fan logic after reach Set temp︰stop or run in low speed
    Sensor Internal or External︰Internal
    Motorized Valve Wiring︰2 wires
    Auto restart Memory function︰yes
    Optional Color for thermostat︰black



    FAQ
    Q1. Can I have a sample order for wifi thermostat?
    A: Yes, we welcome sample order to test and check quality. More detail please contact with us directly.

    Q2. What about the lead time?
    A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

    Q3. Do you have any MOQ limit for wifi thermostat?
    A: 50pcs. 10pcs for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx, TNT or by air or by sea. It usually takes 3-5 days to arrive.

    Airline and sea shipping is also optional. Airline need 3-6 days and sea shipping need 20-35 days.
    Q5. How to proceed an order for wifi thermostat?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on wifi thermostat?
    A: Yes. When quantity is more than 200 pcs, your logo could be printed on the thermostat and app.
    Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 18 months warranty to our products.

    Q8: How to deal with the faulty?
    A: Your thermostat carries an 18 month warranty from date of purchase. Service outwith the warranty period may incur a charge.

    Q9. Can you do OEM and ODM for us?
    A: Yes. We are professional in provide OEM and ODM service.
