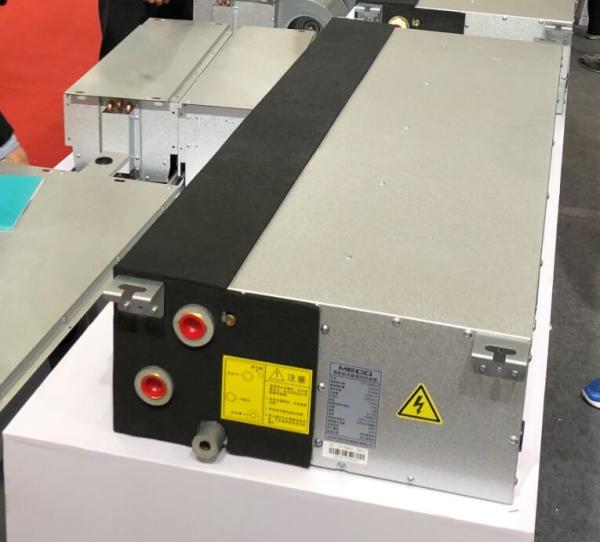

Super slim Ceiling Suspended Fan Coil Unit 1200CFM, 2-tube, with filter and air return box optional,CE certificated

Super slim Ceiling Suspended Fan Coil Unit , with cross flow fan, it features low noise, stable operation, high efficiency, good looking appearance, slim body and various operation modes to be selected. Furthermore, long distance monitoring and other control functions are available. Super slim Ceiling Suspended Fan Coil Unit, it is widely used in office, hotel and villa.

Main features

1) FRAME AND STRUCTURE
Panels and frame of super slim Ceiling Suspended Fan Coil Unit are made of galvanized steel, properly punched and punched for fixing both accessories and the unit itself.

2) COOLING OR HEATING COIL
The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve.
3) FAN DECK
The fan decks of super slim Ceiling Suspended Fan Coil Units are YILIDA brand, best made in China, and composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.
4) DRIP TRAY
The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents. Yilida brand.
5) FILTER
The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum frame.
The filter is installed on the units with plenum only.
6) ELECTRICAL CONNECTION BOX
All electric wires are connected to enclosed electrical terminal block, situated on the same side of the water connections.

Characteristic of Ceiling Suspended Fan Coil Unit

1 .Excellent outside condensate-water proof performance thanks to compression-moulding chassis with integrated heat-insulating material.

2. Slim design

3. Low noise

4. Hot galvanized steel case

5. Various type of controller available (optional)

6. 3 way valve (optional).

7. Long lifespan and washable filter with air return box. (optional)

8. Different kinds of wired remote control available (optional)

Specifications for Super slim Ceiling Suspended Fan Coil Unit:

1. Air flow 1400CFM, 2380CMH
2. Cooling capacity 12.8Kw Heating capacty 20.1Kw
3. Static pressure 12Pa, 30Pa, 50Pa is optional.
4. Two pipe/tube system
5. AC motor , BLDC brushless motor optional
6. Left pipe or right pipe is optional.
7. Thickness of the unit is 235mm only.
8. Air return direction from back or bottom optional.
9. Plenum and filter is optional
10. Thermostat or valve is optional.

Testing condition for Ceiling Suspended Fan Coil Unit:

2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling

All equipment wiring complies with CE requirementsReliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.

Maintenance Features
· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned

Product certification:

Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

Packing and shipping

Normally we use carton packing. The carton box printed with our MECO brand and unique color and pattern. We also have strong packing as optional. Depends on customers needs, we have crates, pallets, or honeycomb box etc. Our FOB port is NINGBO, China port.

Field-Installed optional Accessories:

· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function

MECO full range of chilled water hydronic water fan coil untis producing now.

For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;

For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.

As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.

Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.

There are two options for the build water valve or without build in water valve.

Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!

Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.

FAQ.

Q:Can you make OEM brand orders with your water fan coil uits?

A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty after shipment of the water fan coil units?

A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.

Short time reaction and professional technical support is our key attention.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our water fan coil units products have 4 pipe system as optional.

Q: Do you have selection software for your FCU?

A: Not yet now. But we can select the units for you based on your given selection request.

▲ Our History

Established in 1998, Taizhou MECO Refrigeration Equipment Co., Ltd is a professional manufacturer which has comprehensive competitiveness in the technology、producing and services of chilled water fan coil units for  more than 20 years. Each year we produce 100000pcs of fan coil units to more than 50 different countries. The yearly sales value is more than 100 million RMB.

▲ Our Factory

Taizhou MECO located in Luqiao District, Tai Zhou City, ZheJiang Province, China. Our manufacturer have 3 sets of automatic fan coil units assembly lines, moreover, matched with high performance enthalpy differentiation test lab; water cooled performance test station; air-conditioning inspection and some other equipment for test. The manufacturer also has many CNC machines and other processing equipments.

Some of our key suppliers for different raw materials or parts,most of them are China best brands:

▲ Our Product

The company’s main products are fan coil units (1-way, 4-way, surrounding air flowing water cassette, high wall mounted fan coil unit, high static pressure ducted fan coil unit, ceiling floor fan coil unit and universal fan coil unit etc.) Unitary system air conditioner (split cassette air conditioner, high/medium/low static pressure ducted air conditioner, ceiling floor unitary system air conditioner etc.) Fixed frequency multi connected air conditioner (ceiling concealed style; cassette style etc.) Our products can meet the various market demands.

▲ Product Application

As an end part product of central air conditioner system, our products can be used in office building, house, or some other large public place. Our products can meet different kinds of installation needs.

▲ Our Certificate

July 2001, The company successfully introduced Kingdee K3-ERP logistics management system to ensure the smooth of the entire manufacturing system;

December 2001, The company obtained ISO 9001:2000 quality management system certification, continuous improving and guarantee for quality.

May 2002, MECO started to produce cassette-type fan coil units and cassette type air conditioner.

November 2008, The company got the production permit of fan coil unit.

December 2009, MECO passed ISO9001:2008 quality certification

March 2011, MECO started to produce the new cassette products: 5th version cassette type fan coil unit.

April 2012， MECO has pioneered to produce cassette fan coil unit with DC motor.

June 2012, MECO launch new European style fan coil unit.

December 2014, MECO launch ultra-thin type fan coil unit.

▲ Production Market

MECO focuses on the R&D and manufacturing of light commercial air-conditioner and fan coil units. We do OEM for many famous central air conditioner enterprises in China and abroad. Nowadays, MECO has grown as a preferred of OEM manufacturer for cassette air conditioner sets. MECO brand gradually expand the scope of sales. With reliable quality and outstanding performance, MECO products are successfully sold to more than 30 countries and regions including: Europe; South America; Middle east; Southeast Asia and Africa etc.

▲ Our service

Our factory offer OEM and ODM for different kinds of fan coil unit, our engineer have rich experience to make special design fan coil unit for your request. 18 months guarantee, we offer free replaceable parts to make sure your fan coil working well.
