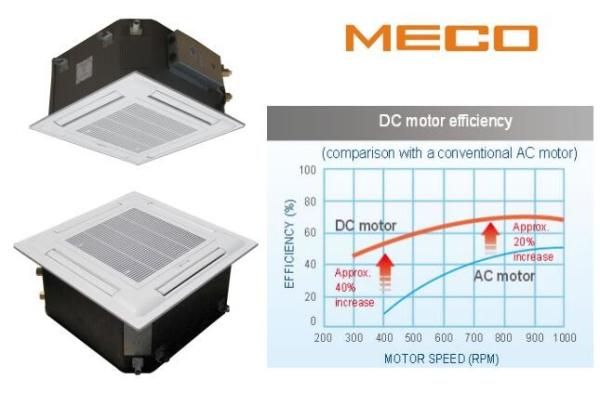

Four way cassette fan coil unit 4TR capacity 1600CFM, brushless DC motor water fan coil unit

Cassette fan coil units is widely used in hotels, restaurants, factories, hospitals, exhibition galleries, shopping malls and moving buildings.It is used to meet the requirements of cooling, dehumidifier, heating and so on.

1. Available in 52 different models. AC motor and BLDC motor, 2 pipe system and 4 pipe system.

2. Centrifugal fan, driven by a three-speed motor, statically and dynamically balanced, low noise.

3. Air flow direction can be changed to have uniform cooling.

4. No need for air duct.Easy for installation.

5. Special design of the air filter, washable for many times.

6. Easy for cleaning and maintenance .

7. Driving device and remote control device can be provided for the outlet plates.

8. Water drain pump build in design.

9. Compact design, suitable for strict space installation.

10. Luxury shape and ABS panel. External and internal sound and heat insulation

Specifications for hydronic four way cassette fan coil model DC-MFP-2720KM4-MK1:

1. Air flow 1400CFM, 1600CMH

2. Cooling capacity 4TR, 15w

3. Heating capacty 7TR, 24Kw

4. Two pipe/tube system

5. With build in water pump

6. Power supply 220V-1-50Hz

7. Cassette Fan coil unit Panel size 1050x1050mm

8. Big air flow

9. Build in electrical box is optional.

10. Modbus function is optional.

Full ranges of capacities we have for M style cassette fan coil unit 2 pipe systems:

Full ranges of capacities we have for M style cassette fan coil unit 4 pipe systems:

Testing condition:

Notes:

1. Both AC or BLDC motor available.

2. Both 50HZ or 60HZ power supplies available.

M style Cassette fan coil unit introduction

As we all know Hydronic cassette units are ideal for applications and modernizations with suspended ceilings. Ceiling cassette fan coil units make each served area an independent controlled temperature zone to suit diverse requirements. Such as hotels, offices, restaurant, shopping mall applications,etc.

MECO start to produce the first cassette fan coil unit in 2001, and Cassette fan coil unit always a hard point for us.

After nearly 20 years’ experience accumulation, we have completely models of M style cassette fan coil unit and BLDC motor type cassette fan coil unit. The M style cassette fan coil unit is our core competitiveness which has high stability and comprehensive functions.

Performance Features for M style chilled water Cassette fan coil Units.

• Fans are statically and dynamically balanced for quiet operation
• 26 chilled water cooling models from 200-1600CFM to properly match job requirements
• 4 different panel sizes for selection 650,850,950,1050.
• 2 pipe or 4 pipe system both available.
• AC motor and BLDC motor also available.

Certifications for MECO cassette fan coil units:

Standard Warranty for all cassette fan coil units orders

• 18 months since delivery date.
• supply 1% free parts with shipment.

Field-Installed optional Accessories:

• 2 & 3 way valves and with the actuators
•
• Wall Mounted Mechanical or Digital Thermostat
• Wall Mounted Digital Thermostat with Modbus function
• Wall Mounted Digital Thermostat with WIFI control function
•

FAQ.

Q:Can you make OEM brand orders water fan coil unit?

A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty for your fan coil unit?

A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our fan coil unit products have 4 pipe system as optional.

Q: Do you have selection software for your Fan coil unit?

A: Not yet now. But we can select the water fan coil units for you based on your given selection request.

▲ Our History

Established in 1998, Taizhou MECO Refrigeration Equipment Co., Ltd is a professional manufacturer which has comprehensive competitiveness in the technology、producing and services of chilled water fan coil units for  more than 20 years. Each year we produce 100000pcs of fan coil units to more than 50 different countries. The yearly sales value is more than 100 million RMB.

▲ Our Factory

Taizhou MECO located in Luqiao District, Tai Zhou City, ZheJiang Province, China. Our manufacturer have 3 sets of automatic fan coil units assembly lines, moreover, matched with high performance enthalpy differentiation test lab; water cooled performance test station; air-conditioning inspection and some other equipment for test. The manufacturer also has many CNC machines and other processing equipments.

Some of our key suppliers for different raw materials or parts,most of them are China best brands:

▲ Our Product

The company’s main products are fan coil units (1-way, 4-way, surrounding air flowing water cassette, high wall mounted fan coil unit, high static pressure ducted fan coil unit, ceiling floor fan coil unit and universal fan coil unit etc.) Unitary system air conditioner (split cassette air conditioner, high/medium/low static pressure ducted air conditioner, ceiling floor unitary system air conditioner etc.) Fixed frequency multi connected air conditioner (ceiling concealed style; cassette style etc.) Our products can meet the various market demands.

▲ Product Application

As an end part product of central air conditioner system, our products can be used in office building, house, or some other large public place. Our products can meet different kinds of installation needs.

▲ Our Certificate

July 2001, The company successfully introduced Kingdee K3-ERP logistics management system to ensure the smooth of the entire manufacturing system;

December 2001, The company obtained ISO 9001:2000 quality management system certification, continuous improving and guarantee for quality.

May 2002, MECO started to produce cassette-type fan coil units and cassette type air conditioner.

November 2008, The company got the production permit of fan coil unit.

December 2009, MECO passed ISO9001:2008 quality certification

March 2011, MECO started to produce the new cassette products: 5th version cassette type fan coil unit.

April 2012， MECO has pioneered to produce cassette fan coil unit with DC motor.

June 2012, MECO launch new European style fan coil unit.

December 2014, MECO launch ultra-thin type fan coil unit.

▲ Production Market

MECO focuses on the R&D and manufacturing of light commercial air-conditioner and fan coil units. We do OEM for many famous central air conditioner enterprises in China and abroad. Nowadays, MECO has grown as a preferred of OEM manufacturer for cassette air conditioner sets. MECO brand gradually expand the scope of sales. With reliable quality and outstanding performance, MECO products are successfully sold to more than 30 countries and regions including: Europe; South America; Middle east; Southeast Asia and Africa etc.

▲ Our service

Our factory offer OEM and ODM for different kinds of fan coil unit, our engineer have rich experience to make special design fan coil unit for your request. 18 months guarantee, we offer free replaceable parts to make sure your fan coil working well.
