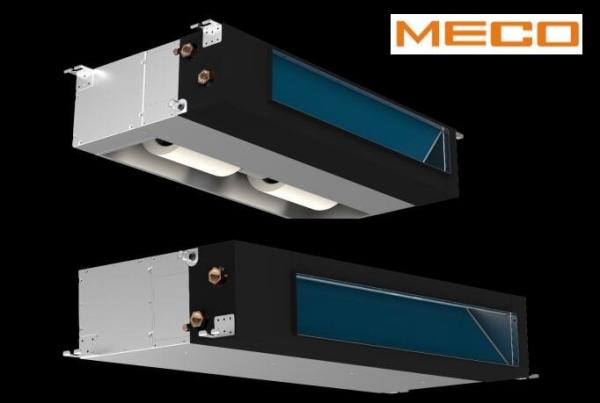

4-tube , DC motor, ceiling suspended fan coil unit 200CFM, CE certificated with air return box optional and filter

Ceiling suspended fan coil units, with cross flow fan, it features low noise, stable operation, high efficiency, good looking appearance, slim body and various operation modes to be selected. Furthermore, long distance monitoring and other control functions are available. Ceiling suspended fan coil unit, is widely used in office, hotel and villa.

It has an elegant and novel appearance with automatic drainage and can be installed on the floor or under the ceiling. With the features of easy and flexible installation, wide range and long-distance air supply, good performance, various control functions and slim body, it is especially applicable to the hotel, office, meeting room with low space room.

Main features

Ceiling suspended fan coil unit, model is complete, better meet the different needs of customers, not only the product design is rigorous, manufacture meticulously, novel styles, advanced structure, high performance, low noise, less power consumption, safe and reliable, easy installation and maintenance

Energy efficient
Ceiling suspended fan coil unit is made of high quality copper tube heat exchanger, match with high ripple hyperbolic hydrophilic fin that open a window, the use of advanced mechanical non-stretch pipe process, in high thermal efficiency, heat transfer enhancement with large air volume, low noise fan, the maximum heat transfer efficiency of generating unit,

Low noise

The unit is optimized by matching, the fan is passed by one by one to ensure that the unit works quietly and efficiently

No condensate

The unit condenses water plate for the whole stamping, no welds, solder joints, the hard - burning insulation materials in the whole paste in the water dish, eliminate dripping water and condensation phenomenon.

Installation is simple

The horizontal and dark clothing can be interchangeable with the outlet flange of the fan plate with the rhapsody coil, and the user transformation can be adjusted by itself, saving time and effort

Maintenance convenient

Motor used in high precision ball bearing with high quality, do not need to refuel, self-lubrication, low noise, long life, motor central axis are the conditioning and the surface corrosion resistance, durable.

Specifications for Ceiling suspended fan coil unit

1. Air flow 200CFM, 340CMH
2. Cooling capacity 2.15Kw Heating capacty 1.35Kw
3. Static pressure 12Pa, 30Pa, 50Pa is optional.
4. Two pipe/tube system
5. AC motor , BLDC brushless motor optional
6. Left pipe or right pipe is optional.
7. Thickness of the unit is 235mm only.
8. Air return direction from back or bottom optional.
9. Plenum and filter is optional
10. Thermostat or valve is optional.

Testing condition:
2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling

All equipment wiring complies with CE requirements Reliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.

Maintenance Features of ceiling suspended unit
· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned

Product certification:

Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

Packing and shipping

Normally we use carton packing. The carton box printed with our MECO brand and unique color and pattern. We also have strong packing as optional. Depends on customers needs, we have crates, pallets, or honeycomb box etc. Our FOB port is NINGBO, China port.

Field-Installed optional Accessories:

· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function

MECO full range of chilled water hydronic water fan coil untis producing now.

For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;

For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.

As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.

Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.

There are two options for the build water valve or without build in water valve.

Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!

Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.

FAQ.

Q:Can you make OEM brand orders with your water fan coil uits?

A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty after shipment of the water fan coil units?

A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.

Short time reaction and professional technical support is our key attention.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our water fan coil units products have 4 pipe system as optional.

Q: Do you have selection software for your FCU?

A: Not yet now. But we can select the units for you based on your given selection request.

▲ Our History

Established in 1998, Taizhou MECO Refrigeration Equipment Co., Ltd is a professional manufacturer which has comprehensive competitiveness in the technology、producing and services of chilled water fan coil units for  more than 20 years. Each year we produce 100000pcs of fan coil units to more than 50 different countries. The yearly sales value is more than 100 million RMB.

▲ Our Factory

Taizhou MECO located in Luqiao District, Tai Zhou City, ZheJiang Province, China. Our manufacturer have 3 sets of automatic fan coil units assembly lines, moreover, matched with high performance enthalpy differentiation test lab; water cooled performance test station; air-conditioning inspection and some other equipment for test. The manufacturer also has many CNC machines and other processing equipments.

Some of our key suppliers for different raw materials or parts,most of them are China best brands:

▲ Our Product

The company’s main products are fan coil units (1-way, 4-way, surrounding air flowing water cassette, high wall mounted fan coil unit, high static pressure ducted fan coil unit, ceiling floor fan coil unit and universal fan coil unit etc.) Unitary system air conditioner (split cassette air conditioner, high/medium/low static pressure ducted air conditioner, ceiling floor unitary system air conditioner etc.) Fixed frequency multi connected air conditioner (ceiling concealed style; cassette style etc.) Our products can meet the various market demands.

▲ Product Application

As an end part product of central air conditioner system, our products can be used in office building, house, or some other large public place. Our products can meet different kinds of installation needs.

▲ Our Certificate

July 2001, The company successfully introduced Kingdee K3-ERP logistics management system to ensure the smooth of the entire manufacturing system;

December 2001, The company obtained ISO 9001:2000 quality management system certification, continuous improving and guarantee for quality.

May 2002, MECO started to produce cassette-type fan coil units and cassette type air conditioner.

November 2008, The company got the production permit of fan coil unit.

December 2009, MECO passed ISO9001:2008 quality certification

March 2011, MECO started to produce the new cassette products: 5th version cassette type fan coil unit.

April 2012， MECO has pioneered to produce cassette fan coil unit with DC motor.

June 2012, MECO launch new European style fan coil unit.

December 2014, MECO launch ultra-thin type fan coil unit.

▲ Production Market

MECO focuses on the R&D and manufacturing of light commercial air-conditioner and fan coil units. We do OEM for many famous central air conditioner enterprises in China and abroad. Nowadays, MECO has grown as a preferred of OEM manufacturer for cassette air conditioner sets. MECO brand gradually expand the scope of sales. With reliable quality and outstanding performance, MECO products are successfully sold to more than 30 countries and regions including: Europe; South America; Middle east; Southeast Asia and Africa etc.

▲ Our service

Our factory offer OEM and ODM for different kinds of fan coil unit, our engineer have rich experience to make special design fan coil unit for your request. 18 months guarantee, we offer free replaceable parts to make sure your fan coil working well.
