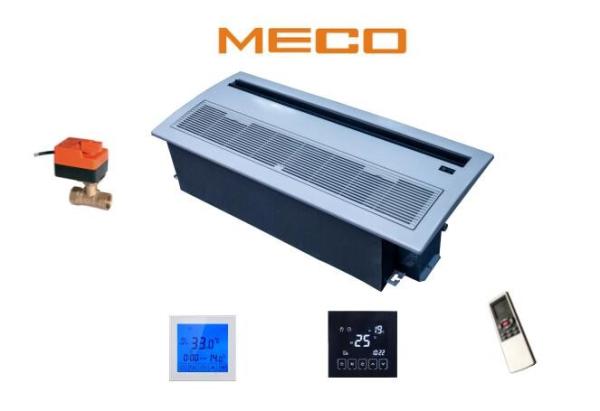

MECO’s one way blowing cassette fan coil unit is developed by long time producing and selling experience. The one-way blowing cassette fan coil unit have passed ISO 9001 and CE certificate. It can be installed in the side of ceiling.

Products specification of one-way cassette fan coil unit

Products Feature and details

1. Use thin design, the thickness of the unit only 235mm, which can make fan coil unit installed in a small space.

2. Controlled by remote controller and wire controller, very convenient. Auto swing, it can offer wide air flowing range. Height to 3.5m, air supply angle to 50.

3. Equipped with manual longitudinal guide air strip, which can adjust the distribution of air flow in all directions.

4.The one-way cassette fan coil unit use double shaft and fan, with high lift water drained pump (750mm), this structure which can make the water fan coil unit running quiet.

Installing dimension

Testing condition:

2-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling

All equipment wiring complies with CE requirementsReliability Features

· Base units are CE certified for EU standards

· All units with auto-restart functions.

Maintenance Features

· Integrated Condensate Water drain Pump

· With Built-in Overflow Safety Devices

· Reusable wire framed filters can be vacuum cleaned

Certifications:

Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

Field-Installed optional Accessories:

· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat

· Wall Mounted Digital Thermostat with Modbus function

· Wall Mounted Digital Thermostat with WIFI control function

FAQ.

Q:Can you make OEM brand orders?

A: Yes of course. As a specialized manufacturer and exporter for this fan coil product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang, TCL, AUX, CHIGO, LS,etc.

Q: How long is your warranty?

A: We offer 18 months warranty for our fan coil units. We offer 1% free repair parts and professional technical support.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our products have 4 pipe system as optional.

Q: Do you have selection software for your fan coil unit?

A: Not yet now. But we can select the units for you based on your given selection request.

▲ Our History

Established in 1998, Taizhou MECO Refrigeration Equipment Co., Ltd is a professional manufacturer which has comprehensive competitiveness in the technology、producing and services of chilled water fan coil units for  more than 20 years. Each year we produce 100000pcs of fan coil units to more than 50 different countries. The yearly sales value is more than 100 million RMB.

▲ Our Factory

Taizhou MECO located in Luqiao District, Tai Zhou City, ZheJiang Province, China. Our manufacturer have 3 sets of automatic fan coil units assembly lines, moreover, matched with high performance enthalpy differentiation test lab; water cooled performance test station; air-conditioning inspection and some other equipment for test. The manufacturer also has many CNC machines and other processing equipments.

Some of our key suppliers for different raw materials or parts,most of them are China best brands:

▲ Our Product

The company’s main products are fan coil units (1-way, 4-way, surrounding air flowing water cassette, high wall mounted fan coil unit, high static pressure ducted fan coil unit, ceiling floor fan coil unit and universal fan coil unit etc.) Unitary system air conditioner (split cassette air conditioner, high/medium/low static pressure ducted air conditioner, ceiling floor unitary system air conditioner etc.) Fixed frequency multi connected air conditioner (ceiling concealed style; cassette style etc.) Our products can meet the various market demands.

▲ Product Application

As an end part product of central air conditioner system, our products can be used in office building, house, or some other large public place. Our products can meet different kinds of installation needs.

▲ Our Certificate

July 2001, The company successfully introduced Kingdee K3-ERP logistics management system to ensure the smooth of the entire manufacturing system;

December 2001, The company obtained ISO 9001:2000 quality management system certification, continuous improving and guarantee for quality.

May 2002, MECO started to produce cassette-type fan coil units and cassette type air conditioner.

November 2008, The company got the production permit of fan coil unit.

December 2009, MECO passed ISO9001:2008 quality certification

March 2011, MECO started to produce the new cassette products: 5th version cassette type fan coil unit.

April 2012， MECO has pioneered to produce cassette fan coil unit with DC motor.

June 2012, MECO launch new European style fan coil unit.

December 2014, MECO launch ultra-thin type fan coil unit.

▲ Production Market

MECO focuses on the R&D and manufacturing of light commercial air-conditioner and fan coil units. We do OEM for many famous central air conditioner enterprises in China and abroad. Nowadays, MECO has grown as a preferred of OEM manufacturer for cassette air conditioner sets. MECO brand gradually expand the scope of sales. With reliable quality and outstanding performance, MECO products are successfully sold to more than 30 countries and regions including: Europe; South America; Middle east; Southeast Asia and Africa etc.

▲ Our service

Our factory offer OEM and ODM for different kinds of fan coil unit, our engineer have rich experience to make special design fan coil unit for your request. 18 months guarantee, we offer free replaceable parts to make sure your fan coil working well.
